Bonded vs Sintered NdFeB Magnets: Which One Should You Choose?
- Ethan
- Knowledge base
Sintered NdFeB magnets and bonded NdFeB magnets are the two dominant types of NdFeB permanent magnets on the market. Though both belong to the neodymium magnet family, they differ drastically in manufacturing processes, magnetic performance, and application scenarios.
If you are sourcing NdFeB magnets for industrial applications, you may wonder: what are the differences between sintered NdFeB vs bonded NdFeB magnets? Which option delivers the best cost-performance ratio for your budget?
Clarifying these distinctions enables precise product selection, preventing insufficient performance and unnecessary cost waste.
Contents
Key Takeaways
- Sintered NdFeB: Superior magnetic force and high-temperature stability, ideal for heavy-load and harsh environments (EV motors, MRI equipment).
- Bonded NdFeB: Flexible, customizable into complex shapes and cost-effective, perfect for mass-produced precision components (mobile phone motors, sensors).
- Stronger magnetism does not equal better performance: Properly matched performance cuts costs on machining and anti-corrosion treatment.
- Continuous technical upgrading: focus on high-performance NdFeB magnets, sustainability, and rare earth reduction.

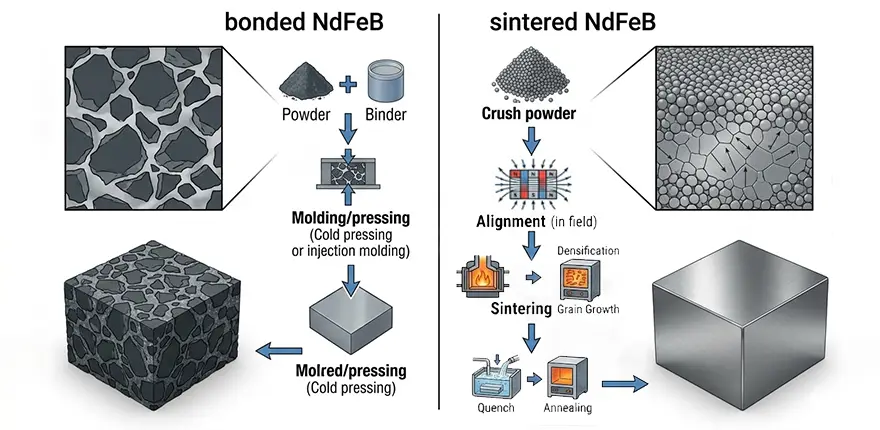

Core Differences Between Sintered & Bonded NdFeB
Manufacturing Process of Sintered NdFeB:Powder Metallurgy
- Melting & Pulverization: Raw materials (neodymium, iron, boron) are smelted into alloy ingots, then crushed and jet-milled into micron-scale powder.
- Magnetic Field Orientation & Compaction: Compressed under a strong magnetic field to align crystal grains in the easy magnetization direction.
- Sintering & Tempering: High-temperature sintering at 1000–1100℃ plus two-stage aging heat treatment to optimize magnetic properties and coercivity.
- Post-processing: Precision machining (wire cutting, grinding) for dimensional accuracy, surface anti-corrosion coating, and final magnetization.
Manufacturing Process of Bonded NdFeB: Molding Process
- Material Mixing: Rapid-quenched NdFeB powder is evenly blended with binders and functional additives.
- Forming: Injection molding for thin-walled complex parts, or compression molding for regular shapes.
- Curing: Heating to harden binders and fix magnet shapes.
- Magnetization: Multi-pole or single-pole magnetization based on application demands.
How Manufacturing Processes Shape Performance
- Density Gap: Sintered NdFeB reaches a density of 7.5 g/cm³ with minimal internal voids; bonded NdFeB contains 20%–30% resin by volume, with a density of only 6.0 g/cm³ — the key reason for its weaker magnetism.
- Mechanical Toughness: Sintered magnets have a rigid, brittle crystal structure; the plastic matrix of bonded magnets delivers outstanding toughness against chipping and cracking.
Performance Comparison
The performance differences between the two types of magnets can be clearly distinguished through key parameters. The table below presents the critical performance indicators, making it easy to quickly compare and select the right option:
| Performance Index | Sintered NdFeB | Bonded NdFeB | Better Option |
|---|---|---|---|
| Magnetic Strength (BH)max | 25–55+ MGOe | 5–15 MGOe | Sintered (5–10 times stronger) |
| Max Working Temperature | 80–250℃ (by grade) | 80–150℃ (binder-limited) | Sintered (high-temperature resistance) |
| Corrosion Resistance | Coating required (prone to rust) | Naturally corrosion-resistant | Bonded (lower maintenance cost) |
| Shape Flexibility | Limited to simple shapes | Complex profiles, thin walls, multi-pole structures | Bonded (no secondary machining) |
| Unit Cost | Higher (extra machining & material loss) | Lower (mass production, no post-processing) | Bonded (budget-friendly) |
Magnetic Strength
- Sintered NdFeB: Mainstream grades exceed 50 MGOe, with high-end versions over 55+ MGOe, ranking as the strongest commercial permanent magnet.
- Bonded NdFeB: Restricted by non-magnetic resin fillers, its is generally below 10 MGOe.
Temperature Stability
- Sintered NdFeB: Maintains stable magnetic properties at 80℃ to 250℃, adapting to harsh industrial high-temperature conditions.
- Bonded NdFeB: Continuous working temperature capped at 150℃. High heat softens and decomposes polymer binders, causing structural failure and irreversible demagnetization under reverse magnetic fields.
Tip: Select sintered NdFeB or SmCo magnets if equipment internal temperature regularly exceeds 120℃.
Corrosion Resistance
- Bonded NdFeB: Polymer binders fully wrap magnetic powder to form a protective barrier, requiring no extra coating for most indoor applications.
- Sintered NdFeB: High chemical activity leads to rapid oxidation and rust in humid environments. Professional surface treatment (nickel plating, zinc plating, epoxy coating) is mandatory to prevent pulverization and failure.
Mechanical Durability
Sintered NdFeB features high hardness but fragility, vulnerable to fracture under impact or stress; it boasts high compression resistance for heavy-load scenarios but lacks flexibility.
Bonded NdFeB gains shock resistance and bending tolerance from flexible binders, preventing cracks and edge chipping — ideal for precision equipment assembly.
Influence of Shape, Cost & Sustainability on Selection
Shape Flexibility & Dimensional Accuracy
Bonded NdFeB dominates in complex customized shapes. Mold integrated forming delivers precise dimensional tolerances without secondary processing, and supports in-mold multi-pole orientation, critical for precision sensors and miniature motors.
Sintered NdFeB is limited by brittleness. Complex structures demand costly post-sintering precision machining, resulting in substantial material waste and prolonged production cycles.
Cost-Effectiveness
- Bonded NdFeB: Low-energy molding process, no secondary machining or complex anti-corrosion treatment, reducing overall production costs — the top choice for mass consumer electronics.
- Sintered NdFeB: High energy consumption from high-temperature sintering, plus cutting, grinding and electroplating procedures, leading to higher manufacturing costs and material loss.
Environmental Impact
Traditionally, bonded NdFeB is more eco-friendly with low energy consumption, less waste and recyclable magnetic powder.
Sintered NdFeB is upgrading sustainably: manufacturers adopt renewable energy for sintering, recycle processing waste and promote eco-friendly epoxy coatings, greatly cutting carbon emissions and narrowing the environmental gap.

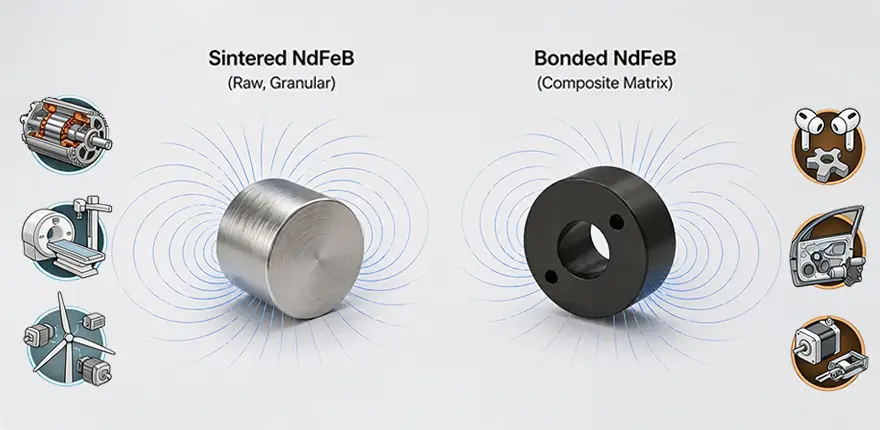

Application Scenario Selection
The core principle of selection is “matching the application requirements.” Below, we clearly differentiate the suitable application ranges of the two types of magnets based on specific use cases, along with a selection comparison table to enable quick and effective decision-making:
| Application Scenario | Recommended Magnet Type | Core Requirements |
|---|---|---|
| Mobile phone vibration motors, wireless earbuds, smart watches | Bonded NdFeB | Small size, complex shapes, low cost, mass production |
| Printer stepper motors, copier magnetic rollers | Bonded NdFeB | Complex magnetic structure, high precision, low noise |
| Automotive ABS wheel speed sensors, window lift motors | Bonded NdFeB | Multi-pole thin walls, corrosion resistance, low cost |
| Micro-robotics, medical wearable devices | Bonded NdFeB | Ultra-miniaturization, flexibility, integrated molding |
| EV main drive motors, powertrain motors | Sintered NdFeB | High (BH)max, high-temperature stability, high power density |
| MRI machines, surgical instruments | Sintered NdFeB | Strong magnetic field, high stability, high reliability |
| Satellite attitude actuators, missile gyroscopes | Sintered NdFeB | Extreme environment adaptability, high coercivity, demagnetization resistance |
| Wind turbines, industrial magnetic separators | Sintered NdFeB | High (BH)max, high durability, heavy-load adaptation |
| Flywheel energy storage, eVTOL electric aviation | Sintered NdFeB | Lightweight, high power density, compact size |
Bonded NdFeB Applications
- Consumer Electronics: Vibration motors, hard drives, wireless earbuds and smartwatches; meets requirements of mini size, thin walls, complex shapes and mass supply.
- Office Automation: Printer stepper motors, copier magnetic rollers; features high-precision magnetic structures and low-noise operation.
- Automotive Components: ABS wheel speed sensors window lift motors and wiper motors; supports multi-pole thin-walled design and long-term corrosion resistance.
- Emerging Fields: Micro-robots and medical wearables; realizes millimeter-level miniaturization and integrated molding with plastic parts.
Sintered NdFeB Applications
- New Energy Vehicles: EV traction motor and powertrain systems; balances high power density, torque output and long-term high-temperature operation.
- Medical Equipment: MRI scanners and surgical magnetic devices; provides ultra-stable strong magnetic fields for accurate imaging and treatment.
- Aerospace & Defense: Satellite attitude actuators and missile gyroscopes; adapts to extreme temperature differences, vacuum and severe vibration with excellent anti-demagnetization performance.
- Industrial Machinery: Wind turbines, industrial magnetic separators and high-power servo motors; delivers high durability and heavy-load adaptability.
- Cutting-Edge Industries: Flywheel energy storage and eVTOL aviation; realizes lightweight design with high energy density.
Future Technology Trends (2026–2030)
- Upgraded Bonded NdFeB: Magnetic strength to 15–18 MGOe, new high-temperature resistant binders raising working temperature above 200℃; recycled magnetic powder cuts costs by 30%–50% and carbon footprint by 60%.
- Optimized Sintered NdFeB: Grain boundary diffusion technology reduces 70% rare earth consumption (Dysprosium, Terbium) without performance loss; hot pressing technology achieves near-net shaping for complex parts, cutting processing waste by 80%.
- Hybrid Magnets: Combine sintered NdFeB’s strong magnetism and bonded NdFeB’s flexible shaping; widely applied in high-end sensors and special motors, becoming an independent mainstream category by 2030.
Switchable magnets are suitable for small to medium sized portable applications. Electromagnets are better suited for heavy-duty industrial use where you need ultra-strong, continuously adjustable holding power. When deciding which to use, always evaluate based on load weight, how often you’ll switch it on/off, and key safety factors.
Conclusion
- Choose bonded NdFeB for complex shapes, mass production and tight budgets.
- Choose sintered NdFeB for strong magnetism, high-temperature resistance and harsh working conditions.
Some FAQs
Is bonded NdFeB a low-cost substitute for sintered NdFeB?
They are complementary rather than alternative. Bonded NdFeB has irreplaceable advantages in complex shaping, multi-pole magnetization and mass production, instead of being a downgraded version.
Is sintered NdFeB always more expensive?
Sintered materials cost more per kilogram, yet excessive machining loss may raise the final part price. Always compare finished component unit prices.
Can bonded NdFeB be used in automobiles due to low heat resistance?
Yes. It is widely used in automotive window motors and seat regulators, with working temperatures below 120℃, fully meeting vehicle internal operating standards.
Can sintered NdFeB be made into arbitrary shapes?
Limited by brittleness, it cannot produce thin-walled tubes, slender rods and toothed structures — classic strengths of bonded NdFeB.
Is higher magnetic performance always better?
Excessive magnetism leads to higher costs, difficult processing and increased corrosion risks. The core selection principle is “adequate performance for actual use”.
