Injection molded ferrite ring magntes are commonly used as permanent magnetic components in fan motor rotors. They are widely used in table fans, pedestal fans, wall fans, потолочные вентиляторы, and other fan motor products. Compared with other magnetic material solutions, injection molded ferrite rings offer advantages in dimensional and structural design flexibility, production consistency, and cost control. They are therefore a common choice for many fan motor manufacturers when designing rotor magnetic components.
This article introduces the suitability of injection molded ferrite ring magnets for different types of fan motors. It also covers several key points that need to be considered when designing fan motor rotors.
Содержание
Основные выводы
- Injection molded ferrite rings are widely used in fan motor rotors, including table, pedestal, wall, and ceiling fans.
- Their good consistency, flexible design, and multipole magnetization support different fan motor requirements.
- Ferrite offers good temperature stability and cost efficiency, making it suitable for long-term and high-volume applications.
- Fan motor rotor design should consider air-gap fit, insert molding, and magnetic pole configuration.
- Injection molded ferrite rings can be customized to match specific motor and rotor designs.
Why Are Injection Molded Ferrite Ring Magnets Suitable for Fan Motors?
Injection molded ferrite ring magnets have several features that match the requirements of fan motors:
1. Consistency Helps Reduce Noise and Vibration
Fan products are very sensitive to operating noise. If a rotor ring has dimensional deviations, inconsistent magnetic performance, or imbalance after assembly, it may lead to noise or vibration.
2. Thin-Walled, Flat Ring Structures for Compact Motors
Fan motors often need to fit magnetic components, rotors, stators, and other parts into limited internal space. Injection molded ferrite rings can be designed with thin-walled, flat, or other customized ring structures. This allows the magnetic component to better fit compact rotor designs.
3. Flexible Pole Configuration and Magnetization
The magnetic design of a fan motor varies with its motor structure and control method. Injection molded ferrite rings can be multipole magnetized according to the specific design. The pole configuration can also be adjusted to match different motor requirements.
4. Good Temperature Stability for Long-Term Operation
Fan motors generate heat during continuous operation. The internal motor temperature can also change with operating time and environmental conditions. Ferrite magnets offer good temperature stability. They can maintain stable magnetic performance within a suitable operating temperature range. Therefore, they are suitable for fan motors that require long-term operation.
5. Cost-Effective
Ferrite is a cost-effective permanent magnet material. It is suitable for household appliances and other cost-sensitive motor applications. For high-volume fan motor production, injection molded ferrite rings can provide a good balance between magnetic performance and manufacturing cost.

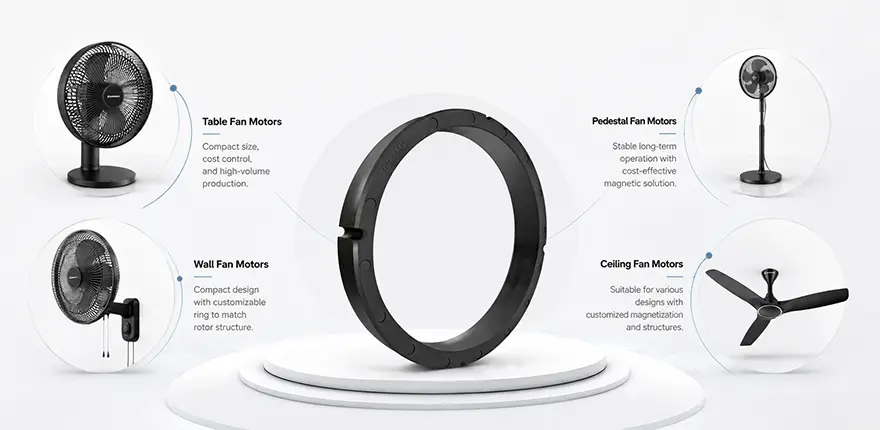

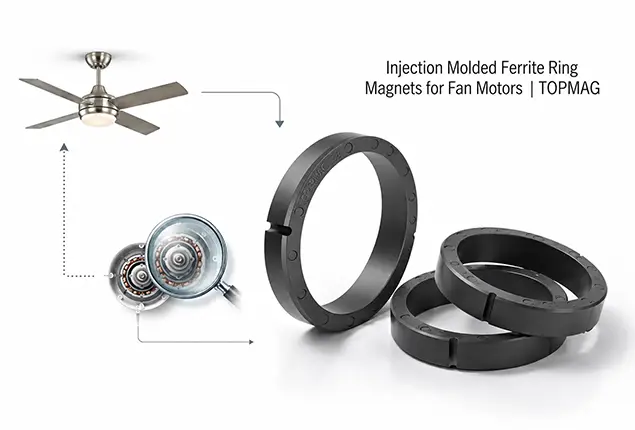

Fan Motor Applications of Injection Molded Ferrite Ring Magnets
Depending on the motor structure, magnetic requirements, and production needs, injection molded ferrite rings can be used in different types of fan motors.
Table Fan Motors
Used in compact table fan motors to meet requirements for small size, cost control, and high-volume production.
Pedestal Fan Motors
Suitable for pedestal fan motors that require stable long-term operation. They provide a cost-effective magnetic component solution.
Wall Fan Motors
Suitable for compact wall fan motors. The ring can be customized according to the rotor structure.
Ceiling Fan Motors
Suitable for different ceiling fan motor designs. The magnetic component can be customized according to the motor structure and magnetization requirements.
Special Considerations for Fan Motor Rotor Design
The following points require special attention when designing injection molded ferrite ring magnets for fan motors. These considerations can differ from those for other BLDC motor applications.
Fit with the Air Gap and Impeller Components
The inner and outer diameters and dimensional tolerances of the ring need to match the motor air gap and rotor structure. In some fan designs, the ring also needs to fit precisely with the impeller or fan blade hub.
Insert Molding with Plastic Fan Rotor Structures
In some fan rotor designs, the plastic hub or blade seat can be combined with the ferrite ring through insert molding. This creates an integrated component and reduces separate assembly steps. This method is particularly suitable for high-volume applications that require high production efficiency.
Pole Design and Starting Torque
The number and arrangement of magnetic poles can affect the motor’s magnetic field changes and operating characteristics. Therefore, they need to match the motor speed, pole-slot combination, and control method. Different types of fans may have different priorities in magnetic pole design.
Looking for Injection Molded Ferrite Ring Magnets for Fan Motors?
Different types of fan motors have different mechanical structures and magnetic performance requirements. Therefore, injection molded ferrite rings need to be developed according to the specific motor and rotor design.
Based on the actual application requirements, the ring structure, magnetization method, and integration with other components can be customized. If you are looking for injection molded ferrite rings for fan motors, Contact our engineering team to discuss your fan motor application and custom requirements.
Некоторые часто задаваемые вопросы
Can Injection Molded Ferrite Ring Magnets Meet the Performance Requirements of High-Speed Fans?
Yes, but the specific speed, ring structure, magnetic performance, and rotor mechanical strength need to be evaluated together. High-speed applications require particular attention to rotor dynamic balance and mechanical reliability.
Do All Fan Rotors Use Insert Molding?
No. Fan rotors can use different methods to install and fix the magnetic ring. Whether insert molding is used depends on the rotor structure, manufacturing process, and product design.
What Motors Are Injection Molded Ferrite Mainly Used For?
They are mainly used in fan motors, pump motors, and some household appliances and small motors. They can also be used in other motor components depending on the specific design.
Does the Number of Magnetic Poles Affect Fan Motor Performance?
Yes. The number of magnetic poles affects the motor’s magnetic field changes and operating characteristics. It needs to match the motor speed, pole-slot combination, and control method.
Can Injection Molded Ferrite Ring Magnets Replace Other Types of Magnetic Rings?
Not always. Replacement depends on magnetic performance, operating temperature, available space, cost, and the specific motor design requirements.
