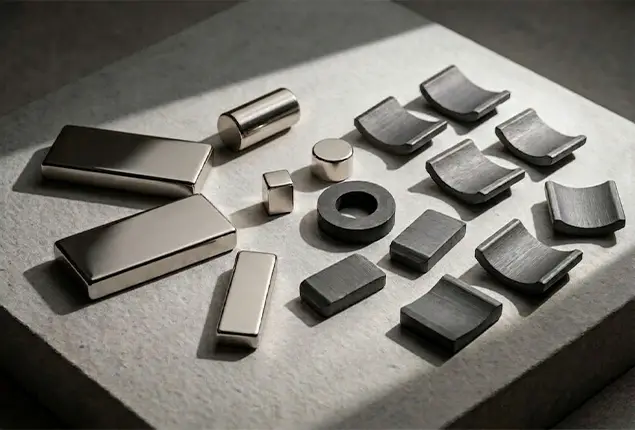

Rare Earth Magnets vs Ferrite Magnets: Key Differences
- Ethan
- Base di conoscenze
Magneti di terre rare e magneti in ferrite are the two most widely used permanent magnet materials in modern industry. Although both generate permanent magnetic fields, they differ significantly in material composition, operating conditions, and application requirements.
Selecting the appropriate magnetic material can directly affect product performance, manufacturing cost, reliability, and service life.
This article compares rare earth magnets and ferrite magnets in terms of forza magnetica, resistenza alla temperatura, costo, e typical applications to help engineers, designers, and buyers make informed decisions.
Contenuti
Punti di forza
- Magneti di terre rare provide stronger magnetic performance in smaller sizes.
- Magneti in ferrite offer better temperature stability and corrosion resistance.
- Rare earth magnets deliver higher performance but at a higher cost.
- Ferrite magnets provide lower costs and more stable supply chains.
- The right magnet depends on prestazioni, environment, space, e budget requirements.
Cosa sono i magneti delle terre rare?
Magneti di terre rare are high-performance permanent magnets manufactured using rare earth elements such as neodymium and samarium. They are widely used in applications that require compact designs and high magnetic performance.
The two primary types of rare earth magnets are magneti al neodimio e samarium cobalt magnets.
Magneti al neodimio (NdFeB)
Magneti al neodimio are composed of neodymium, iron, and boron. They are currently the most widely used rare earth magnets and are available in various grades to satisfy different operating requirements.
Typical applications include:
- Motori per veicoli elettrici
- Servo motors
- Robotica
- Industrial automation equipment
- Wind generators
Samarium Cobalt Magnets (SmCo)
Magneti al samario cobalto are manufactured using samarium and cobalt alloys. They are commonly used in demanding environments where stable magnetic performance is required.
Typical applications include:
- Aerospace equipment
- Military systems
- Medical devices
- High-temperature motors
- Oil and gas equipment
What Are Ferrite Magnets?
Magneti in ferrite, also known as magneti in ceramica, are permanent magnets produced from iron oxide combined with strontium or barium compounds through powder metallurgy and sintering processes.
Due to their mature manufacturing technology, low production cost, and wide application range, ferrite magnets remain one of the most widely produced permanent magnetic materials.
Applications of Ferrite Magnets
Ferrite magnets are commonly used in:
- Loudspeakers
- Household appliances
- Magneti per frigoriferi
- Motori a corrente continua
- Water pumps
- Automotive components
Rare Earth Magnets vs Ferrite Magnets: Key Differences
Magnetic Strength Comparison
Rare earth magnets provide significantly higher magnetic performance than ferrite magnets.
| Parametro | Rare Earth Magnets (NdFeB) | Magneti in ferrite |
|---|---|---|
| Prodotto di massima energia | 200–400 kJ/m³ | 10–40 kJ/m³ |
| Remanenza | 1.0–1.4 T | 0.2-0.4 T |
| Relative Magnetic Strength | Molto alto | Approximately 10–20% of NdFeB |
Practical testing clearly demonstrates the difference.
A magnete al neodimio with a volume of approximately 3.14 cm³ can generate about 11 kg of pull force, while a ferrite magnet of the same size produces only around 1.4 kg.
To achieve a similar pull force of approximately 9.5 kg, a ferrite magnet would require a volume of roughly 56.5 cm³, with its weight increasing from approximately 14 g to 270 g.
Therefore, rare earth magnets are generally preferred when installation space is limited and high magnetic force is required.
Temperature Resistance Comparison
Ferrite magnets typically provide better thermal stability than standard neodymium magnets.
| Parametro | Rare Earth Magnets (NdFeB) | Magneti in ferrite |
|---|---|---|
| Temperatura massima di esercizio | 60–150°C | Up to 250°C |
| Curie Temperature | Approximately 310°C | 450–460°C |
| Thermal Stability | Performance decreases at elevated temperatures | Stable over a wide temperature range |
When operating temperatures exceed design limits, neodymium magnets may experience irreversible demagnetization.Ferrite magnets maintain relatively stable magnetic performance under elevated temperatures.
Applications requiring both strong magnetic performance and high-temperature resistance often use samarium cobalt magnets.
Cost and Supply Chain Comparison
Cost differences remain one of the most important considerations when selecting magnetic materials.
| Comparison Item | Rare Earth Magnets (NdFeB) | Magneti in ferrite |
|---|---|---|
| Raw Material Cost | Alto | Basso |
| Price Stability | Moderato | Alto |
| Supply Risk | Più alto | Più basso |
| Material Availability | Limitato | Widely Available |
| Cost per Unit Holding Force | Più alto | Più basso |
The higher cost of magneti in terre rare is mainly attributed to the mining and refining of rare earth elements such as neodymium and praseodymium.
Additionally, rare earth supply chains are concentrated in limited regions, making prices more sensitive to market fluctuations and policy changes.
Magneti in ferrite primarily use iron oxide and other widely available materials, resulting in lower supply risks and more stable pricing.
From a system design perspective, ferrite magnets often offer lower costs in large-volume applications, while rare earth magnets may reduce overall system size and weight.
How to Choose Between Rare Earth and Ferrite Magnets
Selecting the appropriate magnetic material requires evaluating magnetic performance, operating conditions, installation space, and budget.
Five-Step Selection Guide
| Passo | Consideration | Magneti in terre rare | Magneti in ferrite |
|---|---|---|---|
| 1 | Forza magnetica | High holding force required | Moderate force sufficient |
| 2 | Space Limitation | Compact design required | Larger size acceptable |
| 3 | Temperatura di esercizio | Below 80°C | 80–250°C |
| 4 | Environmental Conditions | Dry or protected environments | Humid or corrosive environments |
| 5 | Bilancio | Performance priority | Cost priority |
Choose Rare Earth Magnets When:
- Strong magnetic force is required.
- Installation space is limited.
- Lightweight designs are preferred.
- High-performance motors are used.
- High energy efficiency is important.
- Compact products are necessary.
Choose Ferrite Magnets When:
- Cost reduction is important.
- Large production volumes are involved.
- Operating temperatures are high.
- Corrosion resistance is critical.
- Space limitations are less important.
- General industrial applications are involved.
Hybrid Design Strategy
Many manufacturers adopt hybrid magnetic designs by using rare earth magnets in performance-critical locations and ferrite magnets in non-critical areas.
This approach helps balance magnetic performance, product cost, and supply chain risks while optimizing overall system efficiency.
Conclusione
Magneti di terre rare e magneti in ferrite each offer unique advantages.
Rare earth magnets are commonly selected for applications requiring compact dimensions and high magnetic performance, while ferrite magnets remain a cost-effective solution for many industrial and consumer products.
Understanding the differences between these two magnetic materials allows engineers and buyers to select the most suitable solution based on application requirements, operating conditions, and budget considerations.
Whether you require stronger magnetic force, higher temperature resistance, or a more cost-effective magnetic solution, TOPMAG can provide professional support based on your application requirements. Our engineering team assists customers with magnet selection, magnetic circuit optimization, sample testing, and custom manufacturing to help achieve the best balance between performance, size, and cost. Contact us today for free technical consultation and sample support.
Alcune domande frequenti
Which magnet is better for magnetic separators?
Ferrite magnets are frequently used in large industrial magnetic separators because of their lower cost.
Why are ferrite magnets still used in motors?
Ferrite magnets provide a lower-cost solution for many industrial and household motors.
Are rare earth magnets dangerous?
Rare earth magnets are generally safe when properly handled. However, their strong magnetic force can cause pinching injuries o damage electronic devices if used improperly.
Which magnet lasts longer?
Both rare earth magnets and ferrite magnets can maintain their magnetic properties for many years.
Ferrite magnets usually offer better corrosion resistance, while coated rare earth magnets can also provide excellent long-term durability.
Do magnets lose strength over time?
Both ferrite magnets and rare earth magnets can retain most of their magnetic strength for decades under proper operating conditions.
